Full-field measurement techniques and local mechanical properties identification

Categories: Current Research

Details

Developments of smart system for accurate 2D/3D displacement and deformation measurement
Smart devices like smartphones have experienced massive advances in their hardware systems in recent years, providing users with high-end components including high-speed and high-resolution digital cameras, graphics processing units (GPUs), and various sensors. The superior performance make smartphones an ideal platform for conducting various scientific research, which would also positively impact research and educational efforts in developing countries and resource-limited institutions, helping the popularization of advanced scientific instruments and measurement tools. Currently, we are developing field-portable and cost-effective tools for 2D/3D displacement deformation measurements of composites, complex microstructures and biological tissues.

Fig-1

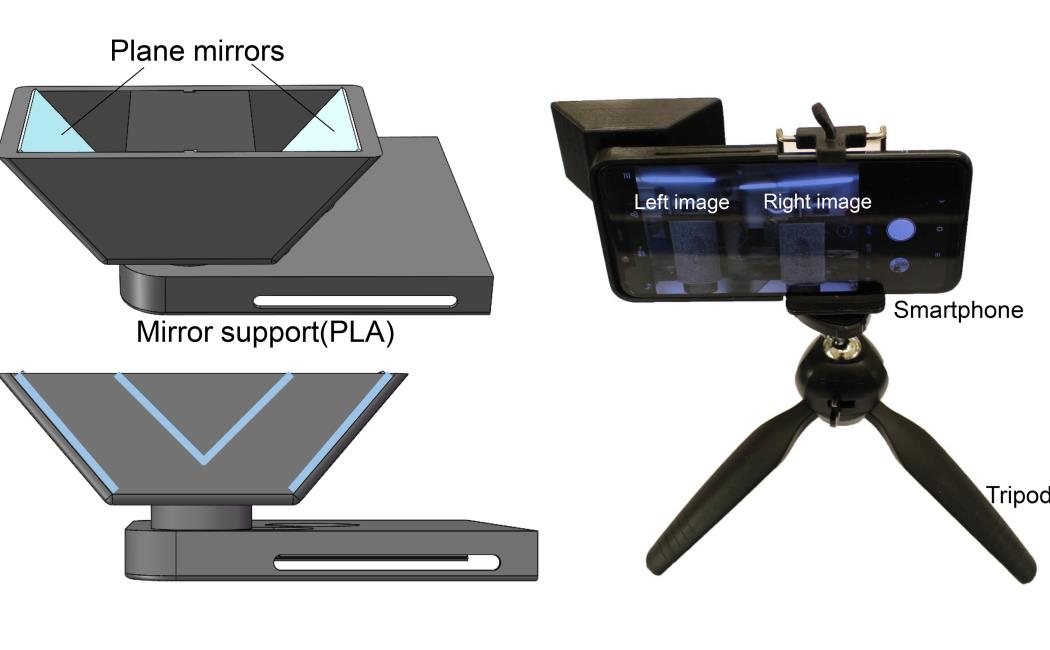

Smartphone-based stereo-DIC system for 3D shape and deformation measurement

Identification of local mechanical properties of heterogeneous materials
We have developed a novel identification method for estimating material properties using full-field measurement where a large volume of 3D data can be processed. Correlation of material images obtained during in-situ mechanical testing within X-ray micro-computed tomograph has been established. An example of 3D identification technique with reference Young’s modulus distribution (Fig. a) and estimated Young’s modulus distribution (Fig. b) is shown below.

nme4853-fig-0009-m

Researcher(s):

  • Prof. Gilles Lubineau (PI)
  • Ran Tao (PhD Candidate)
  • Nurlat M. Bekdullayev (MSc/PhD Student)

Former member(s):

  • Dr. Liping Yu (Postdoc Fellow)
  • Dr Jiangping Xu (former Postdoc Fellow)
  • Dr Renaud Gras (former Postdoc Fellow)
  • Dr Ali Moussawi (former PhD student)
  • Wang Bo (former visiting student)
  • Vinicius Lube (former PhD student)
  • Victor Champaney (Intern Student)

Funding agency: KAUST Baseline


  1. Liping  Yu, Nurlat Bekdullayev, Gilles Lubineau. Smartphone-based single-camera stereo-DIC system: thermal error analysis and design recommendations. IEEE Sensors Journal. 21(7):9567-76. 2021

  2. Liping  Yu, Gilles Lubineau. A smartphone camera and built-in gyroscope based application for non-contact yet accurate off-axis structural displacement measurements. Measurement. 167:108449, 2020

  3. Liping ​Yu, Ran Tao, Gilles Lubineau. Accurate 3D shape, displacement and deformation measurement using a smartphone. Sensors. 19(3):1-15, 2019

  4. Liping ​Yu, Gilles Lubineau. Modeling of systematic errors in stereo-digital image correlation due to camera self-heating. Scientific Reports. 9(1):719, 2019
  5. R Tao, A Moussawi, G Lubineau, B Pan. Accurate kinematic measurement at interfaces between dissimilar materials using conforming finite-element-based digital image correlation. Optics and Lasers in Engineering 81, 103-112, 2016
  6. R Tao, A Moussawi, J Zhou, G Lubineau, B Pan. Field strain measurement on the fiber-epoxy scale in CFRPs. Advancement of Optical Methods in Experimental Mechanics, Volume 3, 309-316, 2016
  7. Ali Moussawi, Gilles Lubineau, Jianping Xu. A 3D domain decomposition approach for the identification of spatially varying elastic material parameters. International Journal for Numerical Methods in Engineering. 102(7):1431-1448, 2015
  8. J Xu, A Moussawi, R Gras, G Lubineau. Using image gradients to improve robustness of digital image correlation to non-uniform illumination: effects of weighting and normalization choices. Experimental Mechanics 55 (5), 963-979, 2015
  9. B Pan, B Wang, G Lubineau, A Moussawi. Comparison of subset-based local and finite element-based global digital image correlation. Experimental Mechanics 55 (5), 887-901, 2015
  10. G Lubineau, A Moussawi, J Xu, R Gras. A domain decomposition approach for full-field measurements based identification of local elastic parameters. International Journal of Solids and Structures 55, 44-57, 2015
  11. A Moussawi, G Lubineau, E Florentin, B Blaysat. The constitutive compatibility method for identification of material parameters based on full-field measurements. Computer methods in applied mechanics and engineering 265, 1-14, 2013
